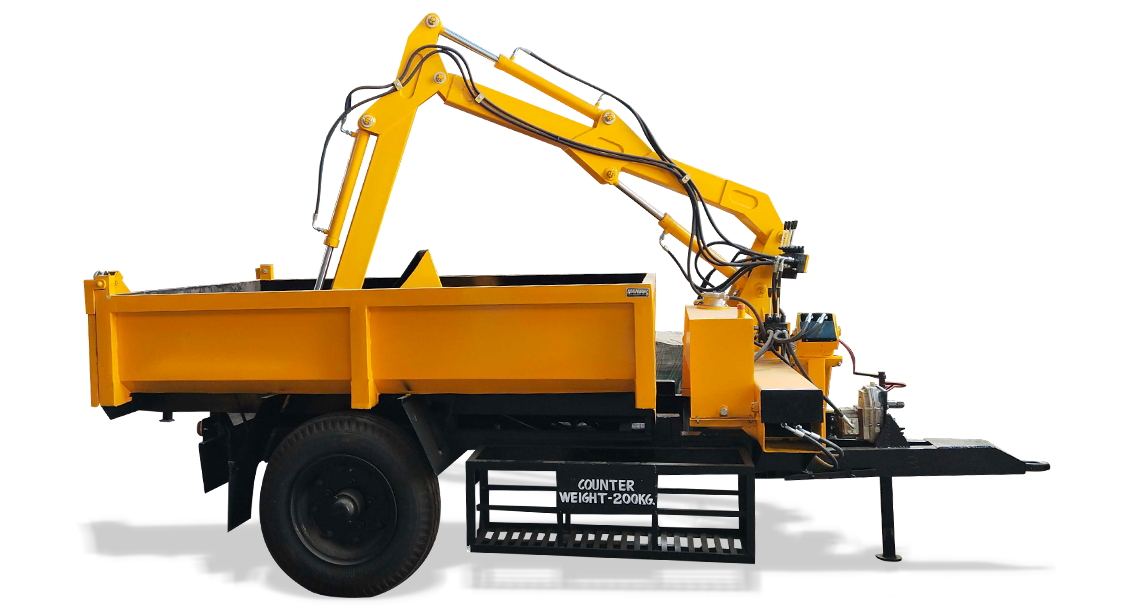

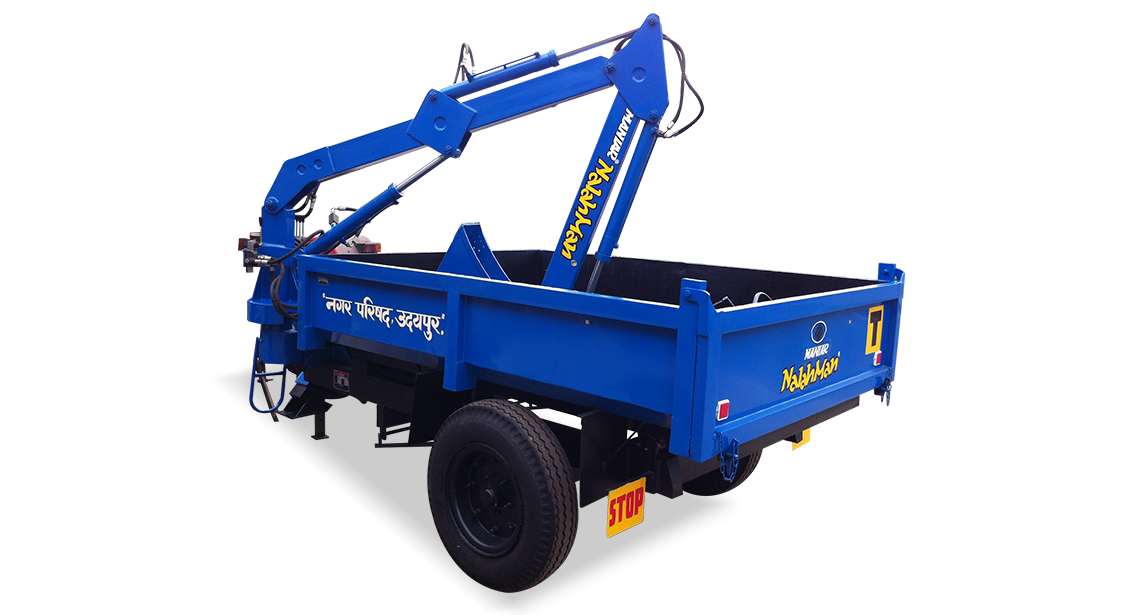

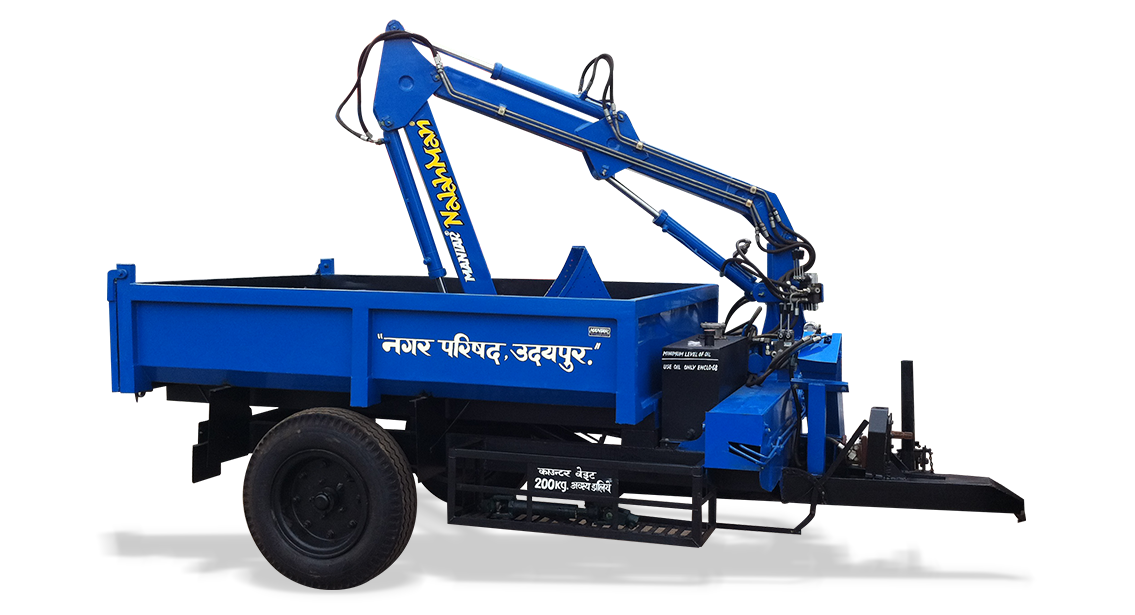

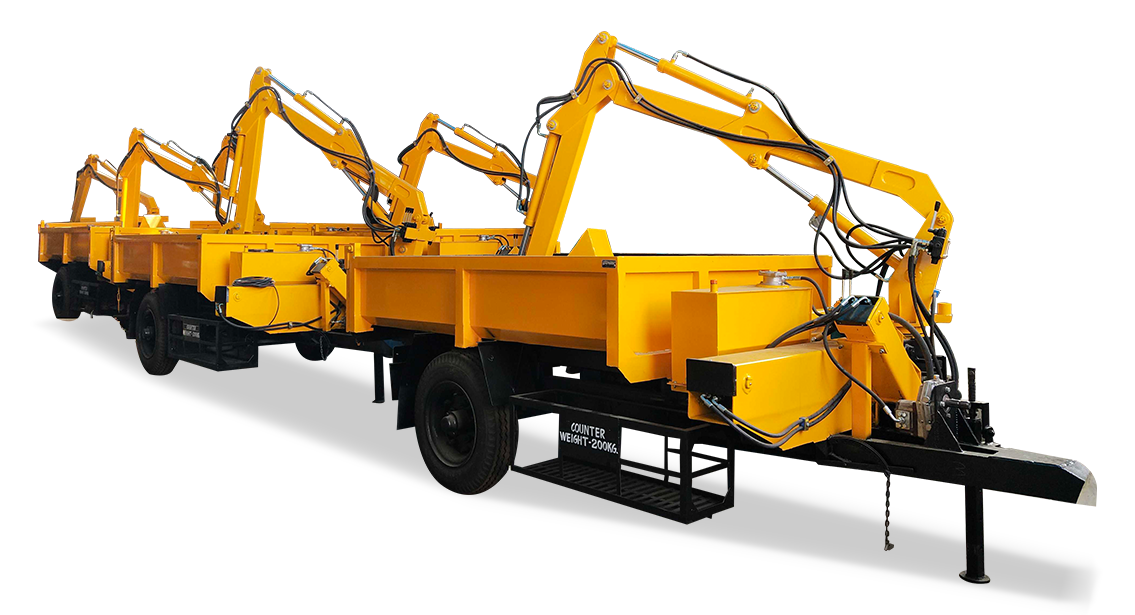

| Road Side Open Drain Ditch Cleaning Machine [NALLAMAN] |
| General |
Tractor |
MIN 35 HP TRACTOR |
| |
Type |
Tipper type Nalla cleaning machine |
| |
Application |
To clean open nala hydraulically with the help of ditch bucket. |
| |
|
The silt from nala can be collected by ditch bucket hydraulically. |
| |
|
The collected silt can be emptied into the tipper body. |
| |
|
The collected silt now trasporting to dump site and emptied hydraulically. |
| |
|
The machine is provided with lateral box hydraulic extension to facilitate the
actual visibility of work on nala. |
| |
Major Components |
Base Frame With Lateral Extension |
| |
|
Turn Table Assembly |
| |
|
Boom Assembly |
| |
|
Ditch Bucket |
| |
|
Stabilisers |
| |
|
Controls |
| |
|
Hydraulic System |
| Performance |
Depth below ground level |
1.5 mtrs approx |
| |
Working boom outreach |
3.3 mtrs approx |
| |
Max ifting height |
4 mtrs approx |
| |
Lateral box extension |
800mm |
| |
Ditch bucket capacity |
0.05 cum |
| Lateral Box Extension |
Type |
Hydraulic Operated |
| |
Extension |
800Mm Approx |
| |
Material |
Mild Steel Rectangular Box Section |
| |
|
Nylon Pads inside the box for smooth movements |
| |
|
Double Acting Hydraulic Cylinders fitted inside the Box |
| |
|
Epoxy Primer inside the box |
| Boom |
Type |
Main Boom And Stick Boom Articulted Type |
| |
Material |
MS Rectangular box section |
| Bucket |
Capacity |
0.05 Cum |
| |
Width |
300mm Min. |
| Hydraulic Cylinders |
Tube |
Honned Tube |
| |
Rod |
Hardened Crome Plated |
| |
Seals |
Reputed Make |
| Hydraulic System |
Hyd Pump |
Gear Pump |
| |
Drive |
From Tractor'S PTO |
| Stabilisers |
Type |
Hydraulic Operated -1 No |
| Slewing |
Type |
90 Degree Through DA Hydraulic Cylinders |
| Hydraulic System |
Hydraulic Pump |
Dowty Or Equivalent Make Gear Pump |
| |
Boom Controls |
DC Control Valve Lever fitted at Operator'S Seat |
| |
Stabiliser Control |
DC Control Valve Lever at Base |
| |
Oil Tank |
60 Ltrs |
| |
Oil Tank Accessories |
Suction Strainer |
| |
|
Oil Level Gauge |
| |
|
Return Line Filter |
| |
Hydraulic Cylinders |
Boom Cylinder |
| |
|
Stick Cylinder |
| |
|
Bucket Cylinder |
| |
|
Swing Cylinder |
| |
|
Box Extension Cylinder |
| |
|
Stabiliser Cylinder |
| |
|
Hopper/Tipper Cylinder |
| Tipper |
Type |
Hydraulic Tipping Type |
| |
Capacity |
2 Cum |
| |
Dimensions |
2440X1830X450mm |
| |
Floor Sheet |
3Mm Mild Steel |
| |
Sides |
2Mm Mild Steel |
| |
Rear Door |
Top Hinged Type Openable |
| Trailer |
Type |
2 Wheeled Trailer Type |
| |
Chassis |
150X75Mm MS Chnanel Section |
| |
Axle |
75X75Mm Ms Square Axle-1 No |
| |
Tyres |
7.50X16-2 Nos |
| |
Suspension |
Rigid |
| |
Brake |
Parking Type |
| |
Bearings |
Taper Roller -4 Nos |
| |
Fittings |
Mudguard |
| |
|
Reflector |
| |
|
Back/Brake Light |
| Paint |
Primer |
Two Coat Of Epoxy Primer |
| |
Finish |
Two Coat Of Pu/Synthetic Enamel Paint |
