Tractor Drawn Sweeper machine is useful for cleaning streets. Mechanical Sweeper which has a main broom at the centre which collects the dust in the collection box.
The mechanical sweeper has no limitations and collect leaves, paper, metal cans and even gravels.
| TECHNICAL SPECIFICATION | ||
|---|---|---|
| MECHANICAL CONVEYOR TYPE ROAD SWEEPER | ||
| Vehicle | Minimum 11 Tonnes GVW | |
| Features | The machine is able to sweep on uneven road condition | |
| The machine is mechanical conveyor type hence eliminating the filter bags system in case of vacuum sweeper. | ||
| The machine is capable to sweep in wet condition. | ||

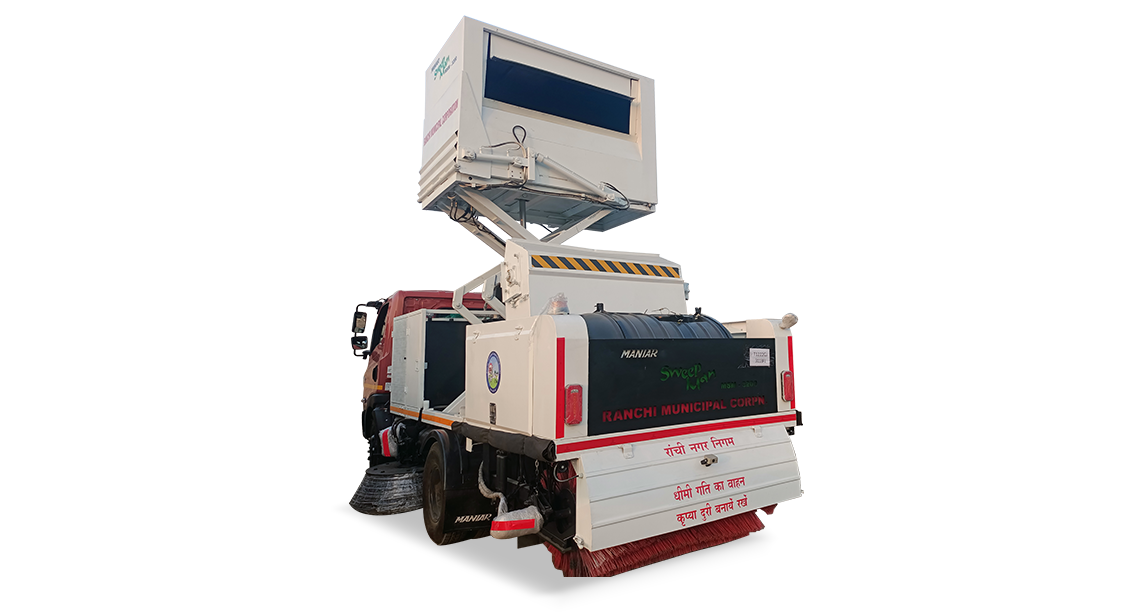

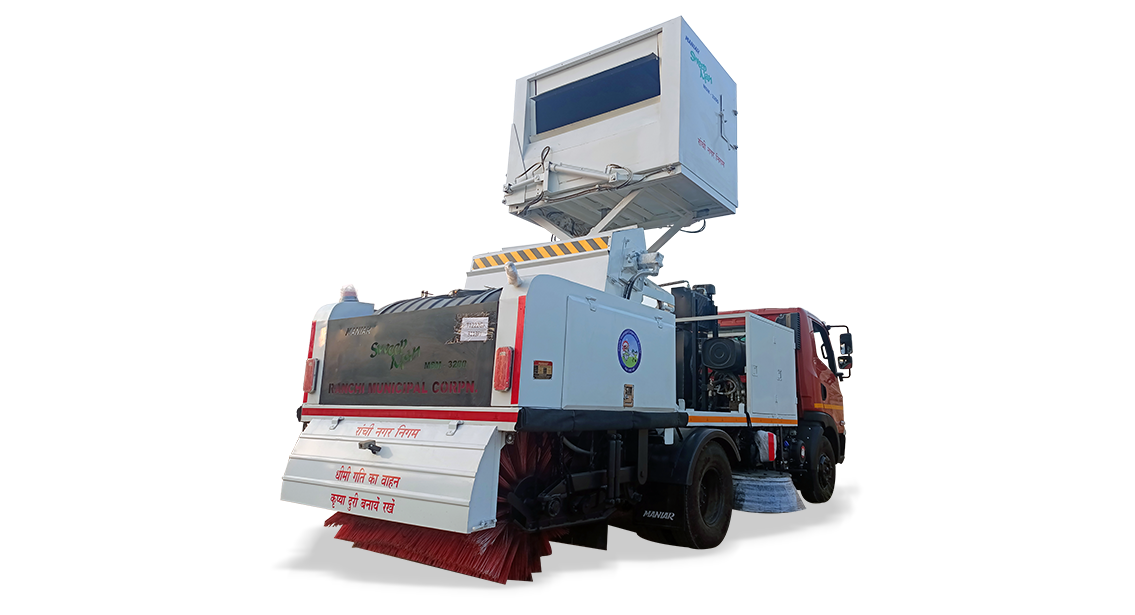

| High rise scissor mechanism can dump debris into the tippers directly. | ||
| The machine have precise setting for side broom with respect to road condition. | ||
| Sweeping width should be minimum 2700mm. | ||
| The machine is capable to lift heavy deposited sand/dust on ground or at corner of footpath/divider. | ||
| The machine have all controls in cabin and lever controls at rear for maintenance purpose. | ||
| Sweeper Machine Specification | ||
| Sweeping Width | 1470mm | |
| Sweeping Width with Side Broom | 2800mm | |
| Main broom | Diameter x length | 890mmx 1470mm |
| Lift control | Hydraulic in cabin | |
| Drive | Hydraulic motor | |
| Digging pressure | Chains with springs | |
| Mounting | Trailing arms | |
| Speed control | Variable, hydraulically adjusted | |
| Side broom | Diameter | 915mm min |
| Drive | Hydraulic motor/direct drive | |
| Mounting | Free floating/sideways oscillation | |
| Digging pressure | Hydraulic , in-cab adjustment | |
| Conveyor | Type | Squeegee with 7 rubber flights |
| Width | 1470mm | |
| Material | Steel chain on urethane sprocket | |
| Drive | Hydraulic drive/direct drive | |
| Speed control | Variable, hydraulic adjusted | |
| Debris hopper | Capacity volumetric | 3.2 cum |
| Material | 3mm thk MS | |
| Lift capacity | 3000 kg | |
| Dump angle | 45-50 degree | |
| Lifting method | Scissor with single hydraulic cylinder | |
| Max. dump height | Min2900 mm | |
| Auxiliary engine sweeper | Make | Mahindra/ kirloskar or equivalent |
| Type | Inline 4 cylinder | |
| Horse power | 65 HP | |
| Air filter | Dry type, heavy duty with pre cleaner | |
| Hydraulic system | Pump | Variable displacement open circuit piston pump with load sense |
| Tank | 180 liters min. | |
| Tank fittings | Suction filter, return line filter, oil level gauge etc | |
| Cooler | Externally mounted/ electric fan | |
| Controls | In-cab, electric with manual override | |
| Safety | Low hydraulic level shut down | |
| Water system | Capacity | 750 liters |
| Tank construction | Polyethylene, removable | |
| Pump | 11.0 LPM flow rate | |
| Spray nozzle | 3 per each broom | |
| Filter | Y Type Suction Filter | |
| Lights | Working light per each broom | |
| Camera | 3 Nos. Camera on both side Broom and Rear with LED Screen fitted in Cabin | |
