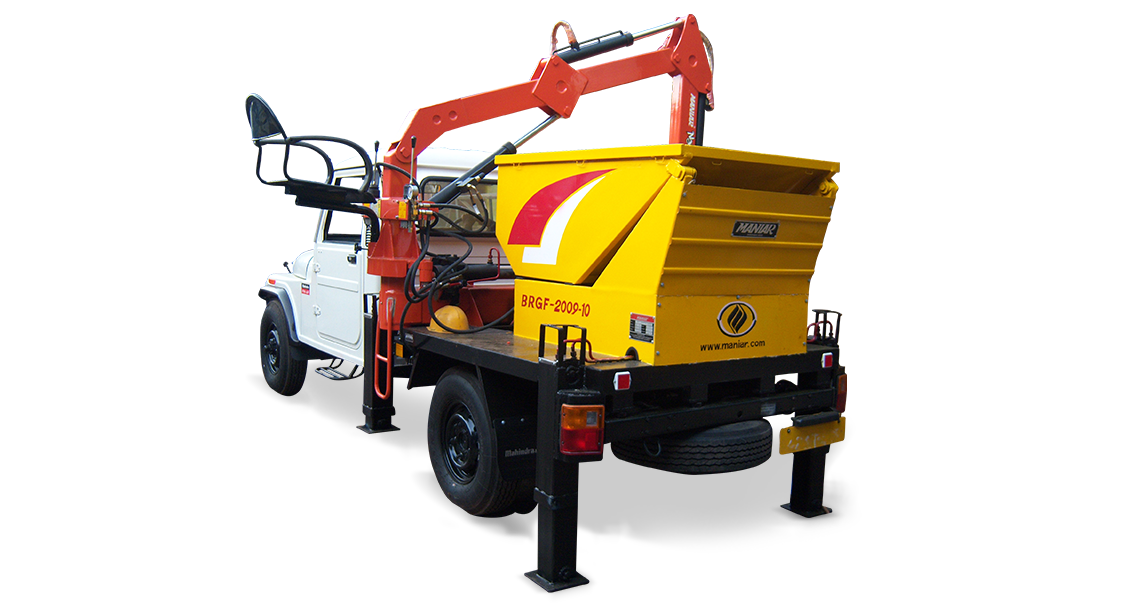

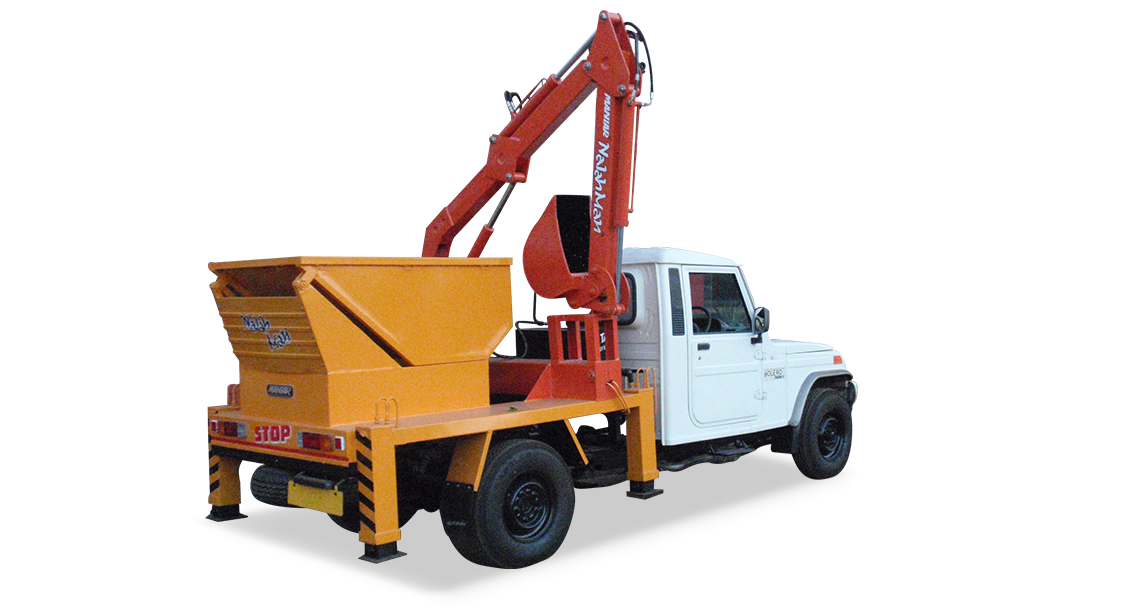

| ROAD SIDE OPEN DRAIN DITCH CLEANING MACHINE [NALLAMAN] |
| General |
Vehicle |
MAHINDRA BOLERO |
| |
Type |
high rise Nalla cleaning machine |
| |
Application |
To clean open nala hydraulically with the help of ditch bucket. |
| |
|
The silt from nala can be collected by ditch bucket hydraulically. |
| |
|
The collected silt can be emptied into the tipper body. |
| |
|
The collected silt now trasporting to dump site and emptied hydraulically. |
| |
|
The machine is provided with lateral box hydraulic extension to facilitate the
actual visibility of work on nala. |
| |
Major Components |
Base Frame With Lateral Extension |
| |
|
Turn Table Assembly |
| |
|
Boom Assembly |
| |
|
Ditch Bucket |
| |
|
Stabilisers |
| |
|
Controls |
| |
|
Hydraulic System |
| Performance |
Depth below ground level |
1.5 mtrs approx |
| |
Working boom outreach |
3.3 mtrs approx |
| |
Max ifting height |
4 mtrs approx |
| |
Lateral box extension |
800mm |
| |
Ditch bucket capacity |
0.05 cum |
| Lateral Box Extension |
Type |
Hydraulic Operated |
| |
Extension |
800Mm Approx |
| |
Material |
Mild Steel Rectangular Box Section |
| |
|
Nylon Pads inside the box for smooth movements |
| |
|
Double Acting Hydraulic Cylinders fitted inside the Box |
| |
|
Epoxy Primer inside the box |
| Boom |
Type |
Main Boom And Stick Boom Articulted Type |
| |
Material |
MS Rectangular box section |
| Bucket |
Capacity |
0.05 Cum |
| |
Width |
300mm Min. |
| Hydraulic Cylinders |
Tube |
Honned Tube |
| |
Rod |
Hardened Crome Plated |
| |
Seals |
Reputed Make |
| Hydraulic System |
Hyd Pump |
Gear Pump |
| |
Drive |
From Vehicle'S Engine Thru PTO |
| |
Type |
Hydraulic Operated -4Nos |
| |
Type |
90 Degree Through Da Hydraulic Cylinders |
| Hydraulic System |
Hydraulic Pump |
Dowty Or Equivalent Make Gear Pump |
| |
Boom Controls |
DC Control Valve Lever fitted at Operator'S Seat |
| |
Stabiliser Control |
DC Control Valve Lever at Base |
| |
Oil Tank |
60 Ltrs |
| |
Oil Tank Accessories |
Suction Strainer |
| |
|
Oil Level Gauge |
| |
|
Return Line Filter |
| |
Hydraulic Cylinders |
Boom Cylinder |
| |
|
Stick Cylinder |
| |
|
Bucket Cylinder |
| |
|
Box Extension Cylinder |
| |
|
Stabiliser Cylinder |
| |
|
Hopper/Tipper Cylinder |
| Hopper |
Type |
High Rise Hydraulic Tipping Type |
| |
Capacity |
0.5Cum |
| |
Dumping Height |
1500Mm Approx |
| |
Floor Sheet |
1.6mm Mild Steel |
| |
Sides |
1.6mm Mild Steel |
| |
Tipping Angle |
80-90 Degree |
| Paint |
Primer |
Two Coat Of Epoxy Primer |
| |
Finish |
Two Coat Of Pu/Synthetic Enamel Paint |
