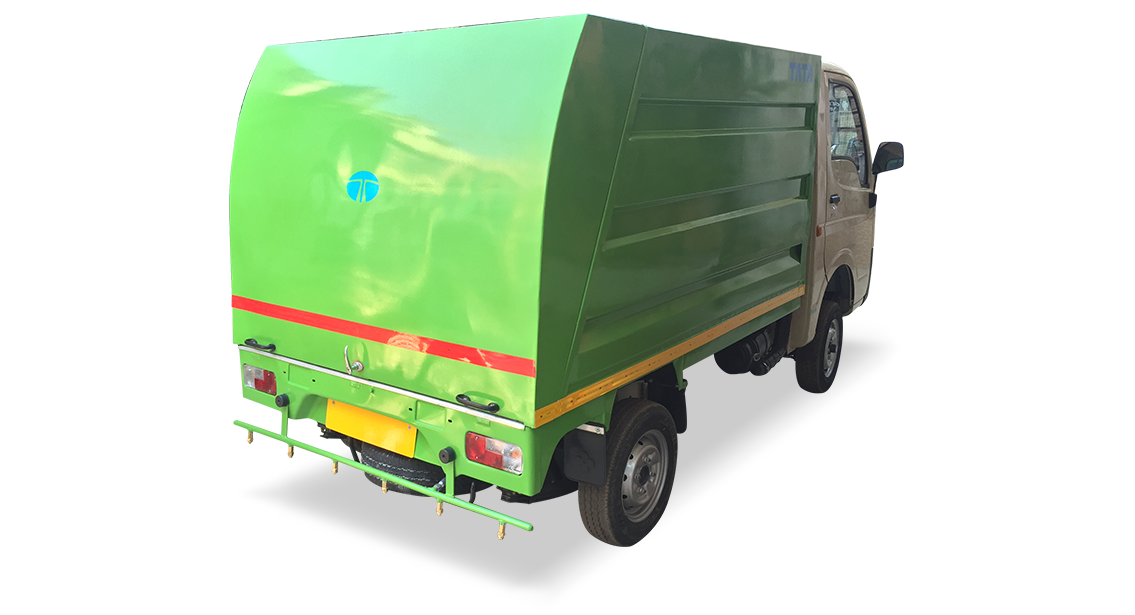

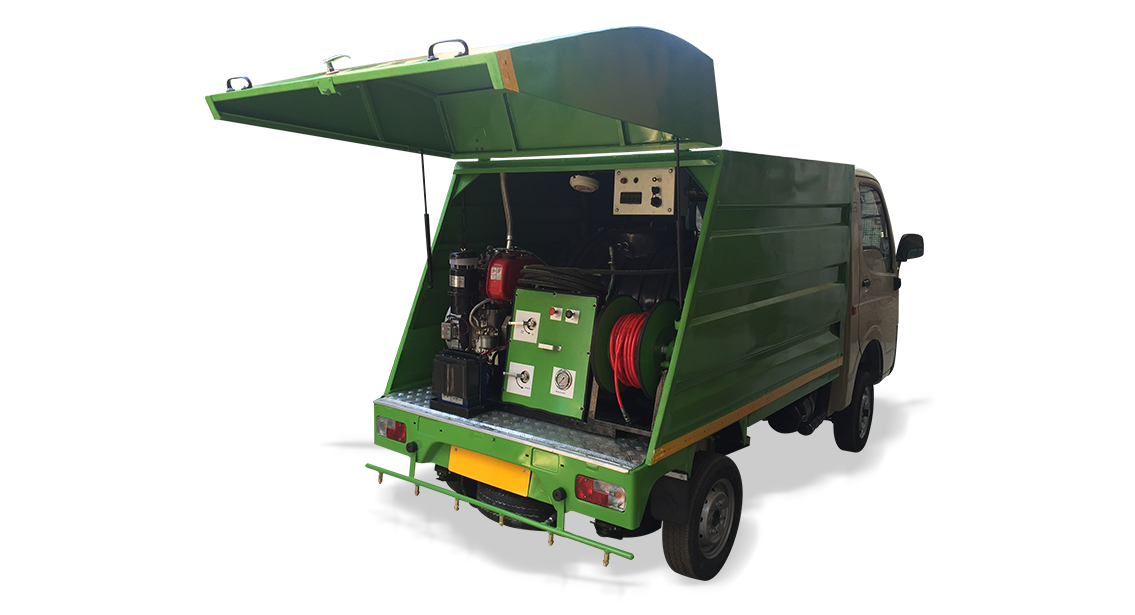

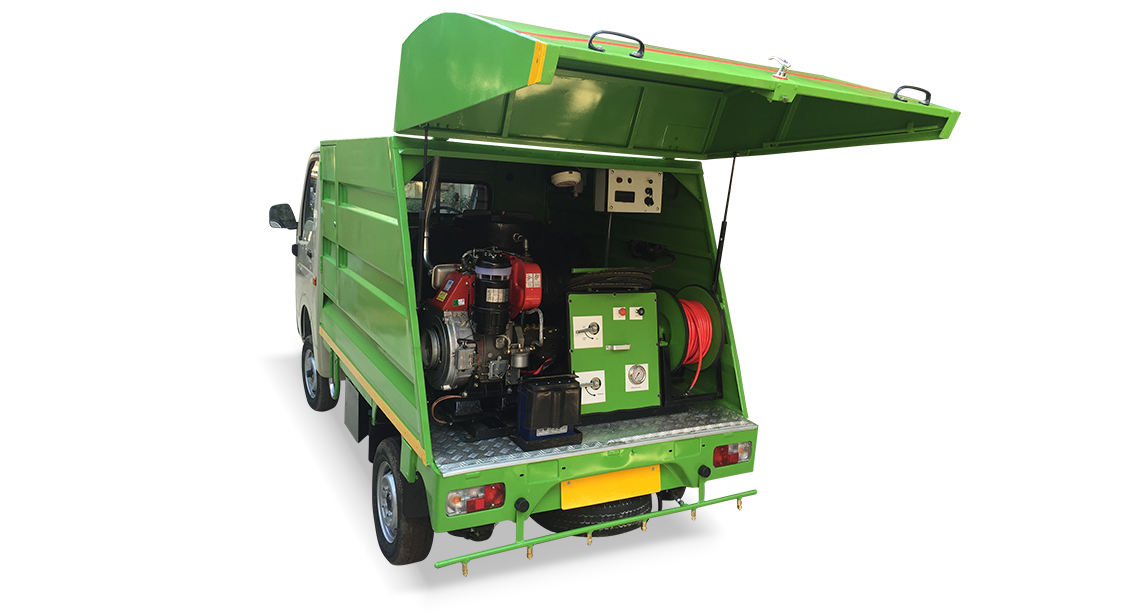

| Technical Specification For Multi Purpose Jetting Machine | ||
|---|---|---|
| Vehicle | TATA ACE | |
| Application | Jetting system | To Clean De-choking Sewer Line Up To 6'' Diameter By High Pressure Water Jet. The Self Propelled Nozzle Breaks the Blocked Sewer Line and Clean effectively. |
| Lateral Cleaning System |
Additional Washing Gun is Provided For Equipment/Container Cleaning Roads/Footpath Cleaning Garden/Tree Water Spraying Toilet/Urinal Cleaning Pesticide Spraying Small Fire Fighting |
|
| Road Water Sprinkling | High Pressure Nozzle Are Fitted At Rear Of the Chassis for Road Sprinkling. | |
| Jetting Pump | Make | Imported Italian Make |
| Flow | 13 LPM | |
| Pressure | 200 Bar Max | |
| Rpm | 3400 | |
| Drive | for Jetting Pump | Through Auxiliary Diesel Engine |
| Engine | Make | Greaves |
| Type | 4 Stroke Air Cooled Diesel Engine | |
| Performance | 10Hp At 3000 Rpm [NB-DN 6270) | |
| Starter | Self-Start | |
| Tank | Capacity | 500 Liters |
| Type | Horizontal Type Plastic Tank | |
| Hose Reel | Type | Horizontal Fitted Manually Rotated Type |
| Fittings | Fitted With S.S Rotary Joint | |
| Mounted On Pedestal Bearing | ||
| Winding | Manual Winding Of 30Mtrs Hose | |
| Jetting Hose | Type | Special High Pressure Jetting Hose |
| Make | Poly hose /equivalent | |
| Hose Dia | 6mm (1/4'') | |
| Hose Length | 30 Mtrs | |
| Working Pressure | 3000 psi | |
| Lateral Cleaning System | ||
| Hand Gun | Make | Imported Italian Make |
| Type | Lance Type With Adjustable Nozzle Spray | |
| Pressure Rating | 250 Bar | |
| Unloader Valve | Make | Imported Italian Make |
| Washing Hose | Dia | 6mm |
| Length | 10Mtrs | |
| Suction Filter | Make | Imported Italian Make |
| Size | 1'' Dia | |
| Valves | for Jetting Hose | 3 Way L Port Ball Valve |
| for Washing Hose | 3 Way L Port Ball Valve | |
| Drain Valve | 25mm Ball Valve | |
| Suction Valve | 25mm Ball Valve | |
| Accessories | Pressure Gauge | Glycerin Filed Pressure Range 0-300Kg/Cm2 |
| Water Level Indicator | Flexible Transparent Pipe | |
| Water Level Alarm | Low Water Audible Alarm | |
| Focus Light | Fitted Inside the rear body. | |
| Tank Filling Cap | Fitted At Top Of the Tank | |
| Rear Body | Type | Closed Body With Rear Openable Door With Locking Arrangement. |
| Paint | Primer | Two Coat Of Epoxy Primer |
| Finish | Two Coat Of Pu/Synthetic Enamel Paint | |
