| Application |

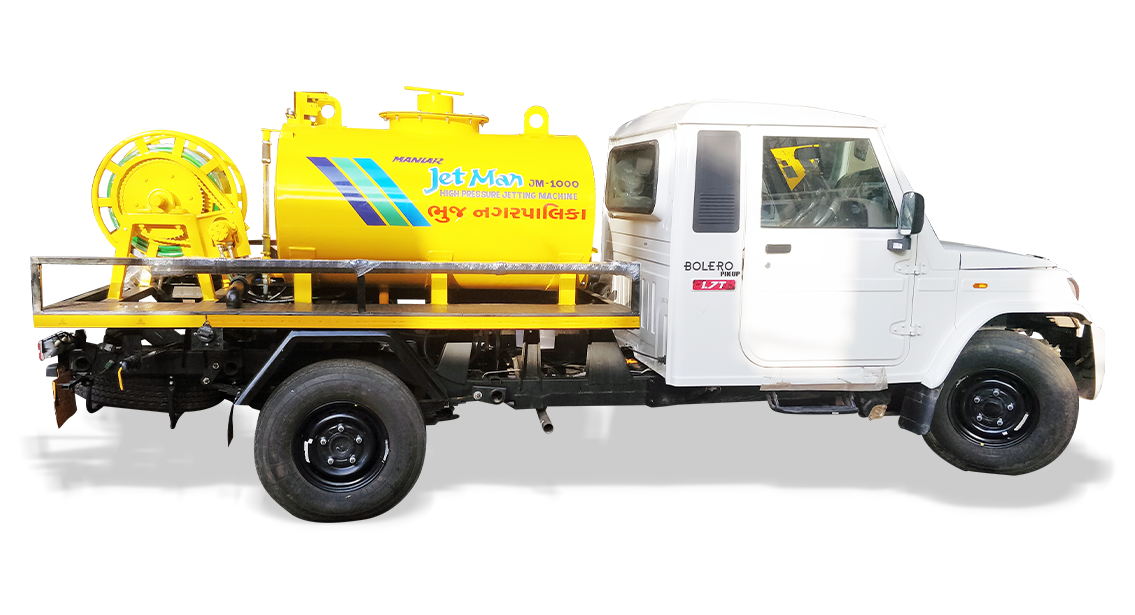

High pressure Jetting |
Jetting machine is capable of de- choking and desilting civil/industrial drains and
sewer lines by using principal of hydrodynamic cleaning by injecting high pressure
water into the lines through a suitably dimensioned sewer
Jetting hose and special cleaning nozzles.
|
| Water Tank |
Capacity (liters) |
1000 |
| Construction |
Thickness (mm) |
5 |
| |
Material |
Mild steel (IS:2062) |
| |
Baffle |
Welded inside the Tank |
| |
Manhole |
Single Manhole At top of Tank |
| |
Ladder |
Fitted to Climb on top of the Tank |
| |
Lifting Hook |
For Lifting the Tank |
| |
Side Railing |
Fitted Both Side of the Tank |
| |
Discharge Valve |
Ball Valve |
| |
Suction Valve |
Ball Valve |
| |
Welding |
Arc/Mig Welding |
| |
Paint |
Epoxy Primer inside the Tank |
| Drive |
For jetting pump |
"Full torque Split shaft PTO fitted between vehicle gearbox and differential " |
| Jetting Pump |
Make |
Imported Pratissoli/Equivalent |
| |
Type |
Triplex Plunger Pump |
| |
Flow |
60 Lpm |
| |
Pressure |
140 Bar |
| Jetting Hose |
make |
Polyhose/Equivalent |
| |
Dia |
12mm |
| |
Length |
60 Mtrs |
| |
Material |
Thermoplastic |
| |
Working Pressure |
170 Bar Min |
| |
Bursting Pressure |
400 Bar Min. |
| |
Drive |
Manual Winding-Unwinding |
| |
Rotary Joint |
Stainless Steel |
| Hose Reel |
Type |
Fixed on Pedestal Bearing |
| |
Drive |
Hydraulic Winding-Unwinding |
| |
Transmission |
Through Chain Drive |
| |
Rotary Joint |
Stainless Steel |
| |
Chain Adjustment |
Provided |
| Lateral Cleaning System |
|
|
| Hand Gun |
make |
Imported Italian make |
| |
Type |
Lance Type With Adjustable Nozzle Spray |
| |
Pressure Rating |
250 Bar |
| Unloader Valve |
make |
Imported Italian make |
| Washing Hose |
Dia |
6mm |
| |
Length |
10Mtrs |
| Suction Filter |
Make |
Imported Italian make |
| |
Type |
Y Type |
| Nozzle |
Type |
Conical Head Front and Rear Hole |
| |
|
Round Head Front and Rear Hole |
| Controls |
Panel |
3 way valve for Jetting hose |
| |
|
3 way valve for washing hose |
| |
|
Pressure gauge |
| |
|
Hose reel rotation control lever |
| Safety |
Accessories |
Water Level Alarm |
| |
|
Water Level Gauge |
| |
|
Suction Filter |
| |
|
Pressure Gauge |
| |
|
Imported make 3 Way Valve |
| |
|
Pressure Relief Valve |
| |
|
|
| Hydraulic system |
Hose reel |
Hydraulic winding-unwinding |
| |
Hydraulic pump |
Dowty/equivalent gear pump |
| |
Control valve |
Walvoil/equivalent make DC valve |
| |
Hydromotor |
M+S/equivalent make gear motor |
| |
Oil tank |
Fitted with accessories like Suction strainer,return line filter,oil level gauge etc
|
| Paint |
Primer |
Two Coat of Epoxy Primer |
