| Vehicle |
MAHINDRA BOLERO |
| Application And Features |

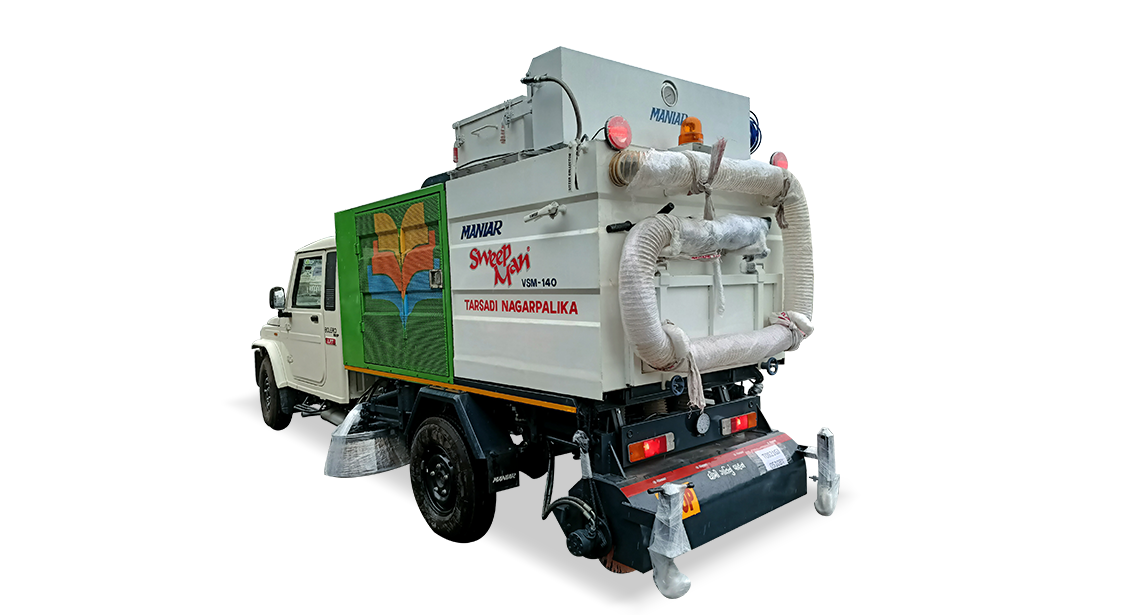

Vacuum sweeper machine is useful to sweep gravels, leaves,litter and sand from
asphalt, concrete and brick lines roads without spreading the dust in atmosphere.
|
|
| |
Specially designed filter to avoid dust into the atmosphere. |
|
| |
One main and two side broom for divider cleaning. |
|
| |
The collected debris can be easily unloaded hydraulically. |
|
| |
The whole assembly is consists of the following components. |
|
| |
· Collection box |
|
| |
· Blower assembly and prime mover |
|
| |
· Dust control filtration system |
|
| |
· Main broom |
|
| |
· Side broom with nozzle |
|
| |
· Hydraulic system |
|
| |
· controls |
|
| Performance |
Hopper Capacity |
1.4 cum |
| |
Sweeping Width |
1400mm |
| |
Sweeping Width With Side Broom |
1600mm |
| |
Sweeping Speed |
3 to 10 km/hr |
| Debris Hopper |
Type |
hydraulically operated |
| |
Capacity |
1.4 cum |
| |
Material |
2mm thk MS |
| |
Rear Door |
manual openable with locking arrangement |
| |
Fittings |
perforated screen inside hopper |
| |
|
door rubber sealing |
| |
|
filter assembly fitted at top of the hopper |
| |
|
suction hose connection at rear |
| |
|
suction hose mounting brackets |
| |
|
suction nozzle connection |
| Blower Assembly |
Type |
high efficency dynamically balanced blower |
| |
Drive |
from split PTO |
| Dust Control System |
|
|
| Filers |
Type |
Plaeted filters |
| |
Numbers |
8 |
| |
Filteration Area |
34 sq mtrs |
| |
Filter Medium |
polyester with high permeability |
| Pulse Jet System |
Type |
Automatic pulse jet |
| |
Valves |
12v DC solenoid operated pneumatic valves |
| |
Control |
Automatic PLC based timer |
| |
Safety |
Pressure safety valve |
| Main Broom |
Number |
One |
| |
Type |
Hydraulic rotated and hydraulic up down |
| |
Material |
Nylon |
| |
Broom Dia |
375mm dia |
| |
Setting |
Brush wear adjustment provided |
| |
Safety |
Lock valves to hydraulic cylinders |
| |
Wheel |
2 numbers caster wheel at rear |
| Side Broom |
Numbers |
Two |
| |
Type |
Hydraulic rotated and hydraulic up down |
| |
Material |
Nylon + steel |
| |
Dia |
500mm |
| |
Setting |
Brush adjustment provided |
| |
Safety |
Special flow compensated valve for continuous rotation |
| |
|
Lock valve to hydraulic cylinders |
| |
Hydraulic Motor |
High torque heavy duty hydro motor fitted on circular brush assembly. |
| Controls |
Cabin Control |
All controls are provided inside the cabin. The controls includes the following
functions:- |
| |
|
Main broom up down |
| |
|
Main broom brush rotation |
| |
|
Side broom up down |
| |
|
Side broom rotation |
| |
|
Hopper up down |
| |
|
PTO/blower ON OFF |
| |
|
Manometer |
| |
|
Focus light switch |
| Hydraulic System |
Hydraulic Pump |
Gear pump of suitable capacity |
| |
|
Drive for pump from engine. |
| |
Control Valve |
Solenoid+lever control |
| |
Oil Tank |
Oil tank fitted with suction strainer, return line filter, oil level gauge etc |
| |
Lock Valves |
Fitted to all cylinders |
| Wondering Hose |
Application |
Useful for litter collection |
| |
Type |
Light weight flexible hose |
| |
Length |
15 ft extended length |
| Electricals |
Lights |
On side brushes |
| |
|
On rear brush |
| |
Controls |
All controls in drivers cabin |
| Paint |
Primer |
Two coat of epoxy primer |
| |
Finish |
Two coats of PU/synthetic enamel. |
