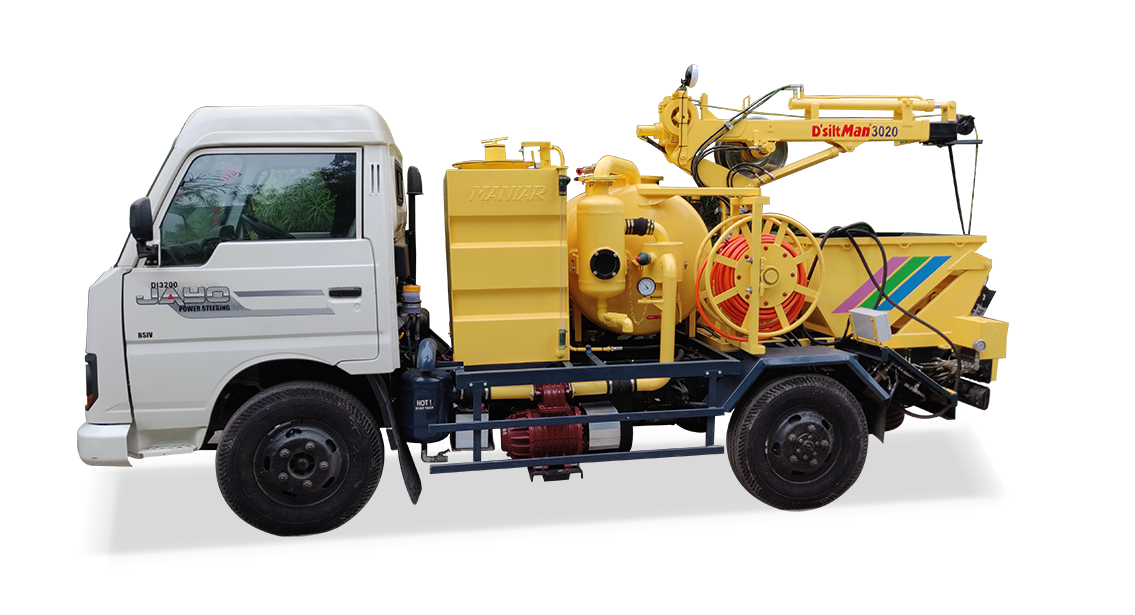

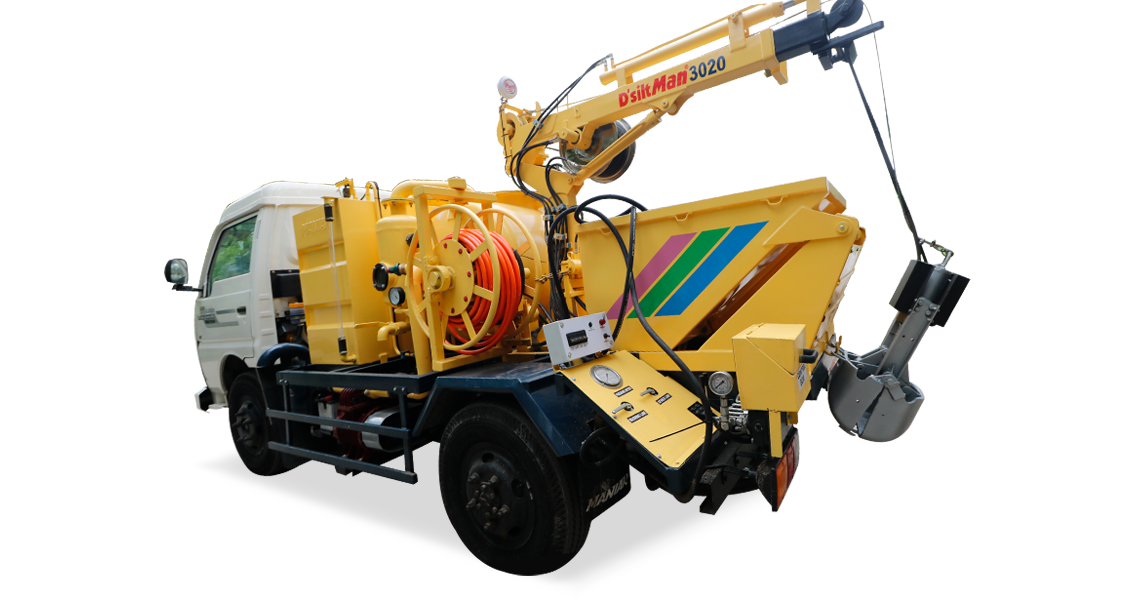

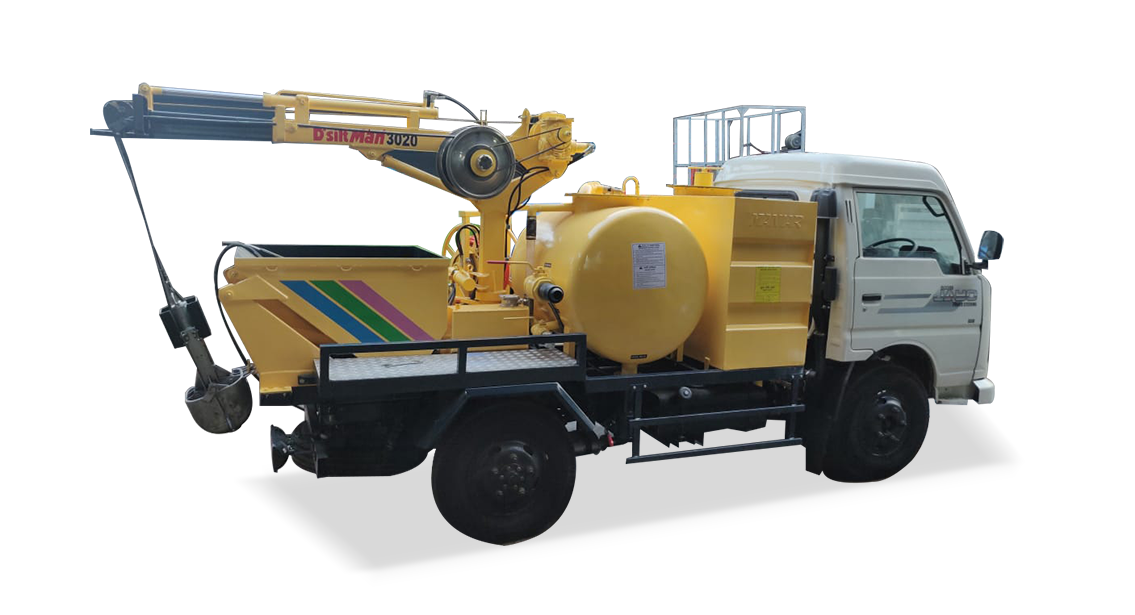

| JETTING -SUCTION AND GRAB BUCKET MACHINE |
| Vehicle |
TATA 407 -3300WB BSVI |
| Application |
High pressure Jetting |
Jetting machine is capable of de- choking and desilting civil/industrial drains and
sewer lines by using principal of hydrodynamic cleaning by injecting high pressure
water into the lines through a suitably dimensioned sewer
Jetting hose and special cleaning nozles.
|
| Application |
Sludge Suction |
The Suction machine is useful to clean sewer line, cesspit, cesspool etc. by
siphoning out of mud, slurry and other material. Aspiration of the effluent from
sewer and drain water lines and chambers will be carried out on the principal of
generating high vacuum in the sludge tank compartment form shiphoning out
effluent,liquids,sludge and other materials. |
| |
Sludge stirring |
The unit is provided with sludge stirring arrangement by which solid silt
accumulated in sewer line is stirred and converted into liquid /semi liquid form by
high velocity air. |
| |
Sludge blowback |
The unit is also provided with blow back system in which only water content of the
sludge tank is discharged by pressurizing the tank so that the carrying only the
sludge / material waste without transporting the unwanted
water portion.
|
| Sludge Tank |
Capacity (liters) |
1000 |
| Construction |
Thickness (mm) |
5 |
| |
Material |
Mild steel (IS:2062) |
| |
Shape |
Cylindrical |
| |
Baffle |
Welded inside the Tank |
| |
Lifting Hook |
For Lifting the Tank |
| |
Side Railing |
Fitted Both Side of the Tank |
| |
Discharge Valve |
Ball Valve |
| |
Suction Valve |
Ball Valve |
| |
Welding |
Arc/Mig Welding |
| |
Paint |
Epoxy Primer inside the Tank |
| |
Tank Mounting |
Fitted On Chassis With Slope |
| |
Rear Door |
Manual Openable Type |
| |
Rear Door Sealing |
U Shape Heavy Duty Rubber Gasket |
| |
Door Locking |
Manual Screw Type Locking |
| Water Tank |
Capacity (liters) |
1000 |
| Construction |
Thickness (mm) |
5 |
| |
Material |
Mild steel (IS:2062) |
| |
Shape |
Rectangular tank |
| |
Baffle |
Welded inside the Tank |
| |
Manhole |
Single Manhole At top of Tank |
| |
Lifting Hook |
For Lifting the Tank |
| |
Discharge Valve |
Ball Valve |
| |
Suction Valve |
Ball Valve |
| |
Welding |
Arc/Mig Welding |
| |
Paint |
Epoxy Primer inside the Tank |
| Drive |
|
Through full torque Split shaft PTO |
| JETTING MACHINE |
| Jetting Pump |
make |
Imported Pratissoli/Equivalent |
| |
Type |
Triplex Plunger Pump |
| |
Flow |
70 Lpm |
| |
Pressure |
130 Bar |
| Jetting Hose |
make |
Parker/Equivalent |
| |
Dia |
12mm |
| |
Length |
60 Mtrs |
| |
Material |
thermoplastic |
| |
Working Pressure |
170 Bar Min |
| |
Bursting Pressure |
400 Bar Min. |
| |
Drive |
Manual Winding-Unwinding |
| |
Rotary Joint |
Stainless Steel |
| Hose Reel |
Type |
Fixed on Pedestal Bearing |
| |
Drive |
Hydraulic Winding-Unwinding |
| |
Transmission |
Thru Chain Drive |
| |
Rotary Joint |
Stainless Steel |
| |
Chain Adjustment |
Provided |
| Lateral Cleaning System |
| Hand Gun |
make |
Imported Italian make |
| |
Type |
Lance Type With Adjustable Nozzle Spray |
| |
Pressure Rating |
250 Bar |
| Unloader Valve |
make |
Imported Italian make |
| Washing Hose |
Dia |
6mm |
| |
Length |
10Mtrs |
| Suction Filter |
make |
Imported Italian make |
| |
Type |
Y Type |
| |
Size |
2'' Dia |
| Nozzle |
Type |
Conical Head Front and Rear Hole |
| |
|
Round Head Front and Rear Hole |
| controls |
Panel |
3 way valve for Jetting hose |
| |
|
3 way valve for washing hose |
| |
|
pressure gauge |
| |
|
hose reel rotation control lever |
| Safety |
Accessories |
Water Level Alarm |
| |
|
Water Level Gauge |
| |
|
Suction Filter |
| |
|
Pressure Gauge |
| |
|
Imported make 3 Way Valve |
| |
|
Pressure Relief Valve |
| SUCTION MACHINE |
| Vacuum Pump |
make |
Jurop /Equivalent |
| |
Type |
Sliding Vane Pump |
| |
Flow |
390 cum/hr |
| |
Pressure |
1.5 Bar Absolute |
| |
Max Vacuum |
0.92 |
| |
Cooling |
Air Cooled |
| Primary Shut Off |
Use |
To Protect the Pump From Sludge And Foreign Particles Entering Due To Overflow From
the Tank. |
| |
Type |
Ball Float Type |
| |
Fitting |
inside the ank |
| |
Float Ball |
Rubber/Stainless Steel |
| Secondary Shut Off |
Use |
To Protect the Pump From Sludge And Foreign Particles Entering Due To Overflow From
the Tank. |
| |
Type |
Ball Float Type |
| |
Fitting |
Fitted After Primary Shut Off |
| |
Float Ball |
Rubber/Stainless Steel |
| Suction Strainer |
Use |
To Protect the Pump From Entering Solid And Semi Solid Particles. |
| |
Type |
Basket Type With Stainless Steel Mesh |
| |
Fitting |
Fitted in Pump Suction Line After Secondary Shut Off |
| Exhaust Silencer |
Use |
To Dempens the Air Flow,Thus Reducing the Operational Noise Level. |
| |
Fitting |
Fitted in Pump Exhaust Line |
| Suction Hose |
make |
Dutron/Equivalent |
| |
Type |
Heavy Duty Pvc Hose |
| |
Dia |
75mm |
| |
Length |
15 Mtrs |
| Suction Valve |
Type |
Ball Valve |
| |
Size |
75Mm |
| Discharge Valve |
Type |
Ball Valve |
| |
Size |
75Mm |
| Hydraulic system |
hose reel |
hydraulic winding-unwinding |
| |
hydraulic pump |
Dowty/equivalent gear pump |
| |
control valve |
Walvoil/equivalent make DC valve |
| |
hydromotor |
M+S/equivalent make gear motor |
| |
oil tank |
fitted with accessories like Suction strainer,return line filter,oil level gauge etc
|
| Accessories |
Sludge Level indicator |
Acrylic Tube Type |
| |
Compound Gauge |
100mm Dial |
| |
Quick Coupler |
Imported Italian make |
| |
Pressure Relief Valve |
Imported Italian make |
| |
Vacuum Relief Valve |
Imported Italian make |
| DESILTING GRAB BUCKET |
| Performance |
Max traveling depth |
32 ft |
| |
Safe load to be lifted |
20 kg |
| |
Swing angle |
90 degree on both side |
| |
Boom lifting angle |
45 degree |
| |
Boom extension |
Hydraulic extension 600mm min. |
| Boom |
|
|
| |
Type |
Hydraulic extendable type |
| |
|
Hydraulic up and down |
| |
|
Made from MS rectangular pipe section. |
| |
|
All profile are plasma/laser cut for better aesthetic look. |
| Grab bucket |
|
Four bar linkage mechanism |
| |
|
Hydraulic operated double acting hydraulic cylinder. |
| |
|
Moulded seamless steel cast side jaws of thickness min 10mm |
| |
|
Jaw opening 0-140° min. |
| |
|
120mm piston displacement Hydraulic operated |
| Hydraulic winch |
|
It is provided on boom pivot for grab bucket up and down movement. It comprises of
reduction gear box, wire reel, hydro motor, wire rope etc. |
| |
|
Hydraulic motor is directly fitted in reduction gear box. |
| |
|
Gear box have two output shaft, one for mounting of wire reel and other one for
pulley to drive the hose reel. |
| |
|
The wire rope of Usha martin makes 6mm dia x 40ft min length is winded on wire reel.
|
| Hose reel |
|
Hydraulically operated hose reel fitted on boom assembly. It is accommodated twin
hose of 40 ft length min. |
| Hydro motor |
|
|
| |
Make |
M+S or reputed make |
| |
Capacity |
12.5cc /rev. |
| Control valve |
|
|
| |
Make |
Walvoil or equivalent make |
| |
Flow rate |
40 LPM |
| Flexible hose |
|
|
| |
Make |
Polyhose or equivalent make |
| Oil tank |
|
|
| |
Capacity |
20 ltrs approx. |
| |
Accessories |
Suction strainer, return line filter, oil level dipstick |
| Hopper |
|
|
| |
Capacity |
0.5 cu.m |
| |
Material |
1.6 mm thk. GI sheet. |
| |
Unloading height |
1200mm approx. |
| Paint |
Primer |
Two Coat of Epoxy Primer |
| |
Finish |
Two Coat of Pu/Synthetic Paint |
