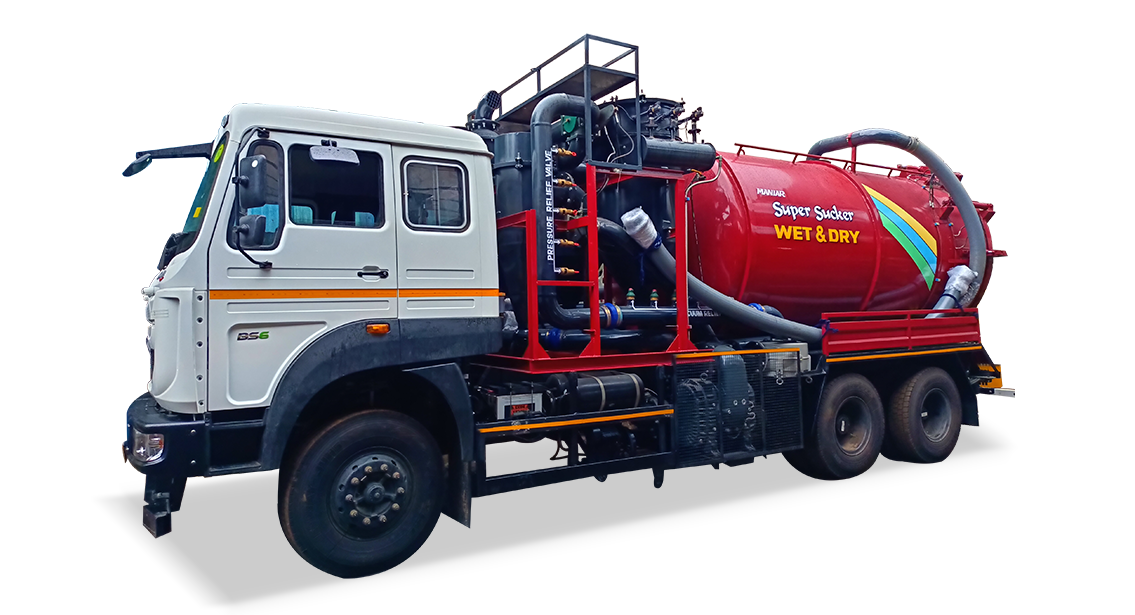

| TECHNICAL SPECIFICATION | SUPER SUCKER MACHINE | |
|---|---|---|
| Vehicle | 28 Ton GVW BSVI | |
| Application | Sludge Suction | The Suction machine is useful to clean sewer line, cesspit, cesspool etc. by
siphoning out of mud, slurry and other material. Aspiration of the effluent from sewer and drain water lines and chambers will be carried out on the principal of generating high vacuum in the sludge tank compartment form shiphoning out effluent,liquids,sludge and other materials. |
| Sludge stirring | The unit is provided with sludge stirring arrangement by which solid silt accumulated in sewer line is stirred and converted into liquid /semi liquid form by high velocity air. | |
| Sludge blowback | The unit is also provided with blow back system in which only water content of the sludge tank is discharged by pressurizing the tank so that the carrying only the sludge / material waste without transporting the unwanted water portion. | |
| Sludge Tank | Capacity (liters) | 15000 |
| Construction | Thickness (mm) | 6 |
| Material | Mild steel (IS:2062) | |
| Shape | Cylindrical | |
| Baffle | Welded inside the Tank | |
| Ladder | Fitted to Climb on top of the Tank | |
| Lifting Hook | For Lifting the Tank | |
| Side Railing | Fitted Both Side of the Tank | |
| Discharge Valve | Ball Valve | |
| Suction Valve | Ball Valve | |
| Welding | Arc/Mig Welding | |
| Paint | Epoxy Primer inside the Tank | |
| Rear Door Sealing | U Shape Heavy Duty Rubber Gasket | |
| Door Locking | Manual Screw Type Locking | |
| Drive | For vacuum pump | PZB/VAS/Equivalent make Full torque Split shaft PTO fitted between vehicle gearbox and differential |
| Suction Machine | ||
| Vacuum Pump | make | Jurop /Equivalent |
| Type | Rotary Lobe Pump | |
| Flow | 4150 cum/hr | |
| Pressure | 1.5 Bar Absolute | |
| Max Vacuum | 93% | |
| Cooling | Air injection Cooling | |
| Primary Shut Off | Use | To Protect the Pump From Sludge And Foreign Particles Entering Due To Overflow From the Tank. |
| Type | Ball Float Type | |
| Fitting | Inside the tank | |
| Float Ball | Rubber/Stainless Steel | |
| Secondary Shut Off | Use | To Protect the Pump From Sludge And Foreign Particles Entering Due To Overflow From the Tank. |
| Type | Ball Float Type | |
| Fitting | Fitted After Primary Shut Off | |
| Float Ball | Rubber/Stainless Steel | |
| Suction Strainer | Use | To Protect the Pump From Entering Solid And Semi Solid Particles. |
| Type | Basket Type With Stainless Steel Mesh | |
| Fitting | Fitted in Pump Suction Line After Secondary Shut Off | |
| Exhaust Silencer | Use | To Dempens the Air Flow,Thus Reducing the Operational Noise Level. |
| Fitting | Fitted in Pump Exhaust Line | |
| Suction Hose | Make | Dutron/Equivalent |
| Type | Heavy Duty Pvc Hose | |
| Dia | 100Mm | |
| Length | 15 Mtrs | |
| Suction Valve | Type | Ball Valve |
| Size | 100Mm | |
| Discharge Valve | Type | Ball Valve |
| Size | 100Mm | |
| Hydraulic system | Tank Tipping | Hydraulic-Front Mounted Cylinder |
| Rear Door | Hydraulic Openable Type | |
| Hydraulic pump | Dowty/equivalent gear pump | |
| Control valve | Walvoil/equivalent make DC valve | |
| Hydromotor | M+S/equivalent make gear motor | |
| Oil tank | Fitted with accessories like Suction strainer,return line filter,oil level gauge etc | |
| Accessories | Sludge Level indicator | Acrylic Tube Type |
| Compound Gauge | 100mm Dial | |
| Quick Coupler | Imported Italian make | |
| Pressure Relief Valve | Imported Italian make | |
| Vacuum Relief Valve | Imported Italian make | |
| Paint | Primer | Two Coat of Epoxy Primer |
| Finish | Two Coat of Pu/Synthetic Paint | |
