Vehicle
|

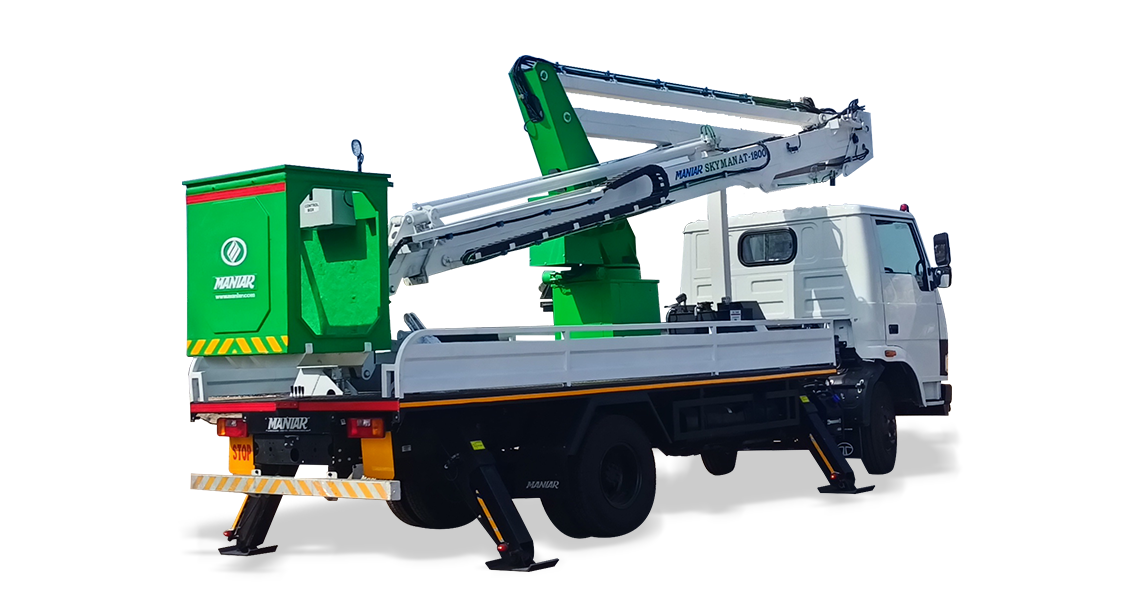

TATA 712 LPT BSVI OR EQUIVALENT VEHICLE
|
|
Type
|
Articulated cum telescopic type
|
|
Performance
|

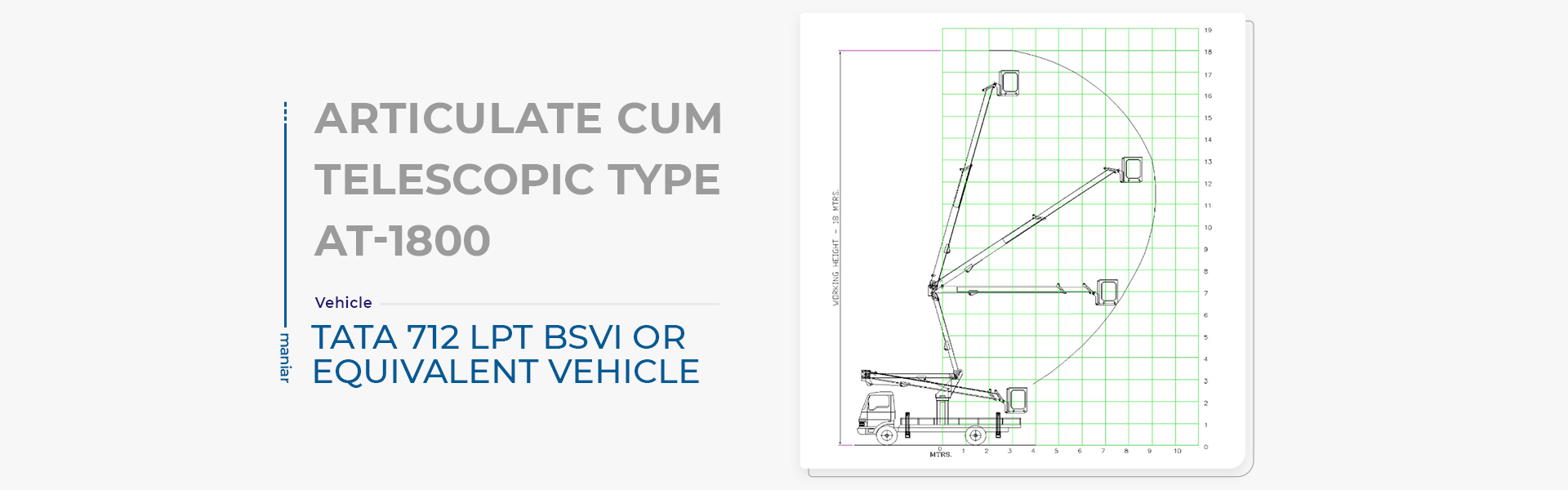

Working Height
|
18m
|
|
|
Cage Floor Height
|
16m
|
|
|
Outreach
|
8 m
|
|
|
Slewing
|
360 cont.
|
|
|
Safe Load
|
200kg
|
|
Boom
|
Type
|
Articulated cum telescopic type
|
|
|
Material
|
High tensile steel min yst 700n/mm2
|
|
|
Section
|
Box section
|
|
|
Pivot Points
|
Self-lubricating
|
|
|
Boom Profiles
|
Plasma/laser cut
|
|
Hydraulic Ram
|
Type
|
Double acting
|
|
|
Tube
|
Horned tube
|
|
|
Rod
|
Induction hardened chrome plated
|
|
|
Seals
|
Reputed make
|
|
Stabilizers
|
Type
|
Hydraulic operated
|
|
|
Numbers
|
4
|
|
|
Over travel
|
To level the vehicle on uneven ground
|
|
|
Lock Valves
|
Fitted to all stabilizers for safety
|
|
|
Stabilizer Control
|
Independent control
|
|
Slewing
|
Type
|
Worm reduction slew bearing
|
|
|
Slewing Range
|
360 degree continuous
|
|
|
Type
|
Mechanical and hydraulic leveling
|
|
Operator Cage
|
Type
|
FRP/MS/Aluminium cage
|
|
|
Size
|
1000x1060x770 mm
|
|
|
|
The basket have non slip flooring
|
|
|
|
Drain holes for water drainage
|
|
|
|
The FRP cage is insulated to 600v (tested to 2200v).
|
|
|
|
Tool box inside the basket.
|
|
|
|
Working light
|
|
|
|
Emergency switch
|
|
|
|
Safety hooks inside the basket.
|
|
Controls
|
Stabilizer Controls
|
Independent control at chassis deck
|
|
|
Base Control
|
Switch control panel at base
|
|
|
Cage Control
|
Switch control panel at cage
|
|
|
PLC Control
|
Safety system has been integrated with controls by use of program in a programmable
logical controller of European brand for high reliability and long service life.
|
|
Safety
|
Emergency Pump
|
Emergency hand pump is provided to enable stopping of the equipment in case of
pump/engine failure.
|
|
|
Emergency switch
|
Emergency cut off at base control
|
|
|
|
Emergency cut off at basket control
|
|
|
Boom-stabilizer interlocks
|
Boom operates only after stabilizers are extended.
|
|
|
|
Stabilizers lock when machine is open.
|
|
|
|
Safety belt anchorage points on platform.
|
|
|
|
Pilot check valves on hydraulic stabilizers.
|
|
|
|
Over center valve on boom cylinders.
|
|
|
|
Slew restriction when boom is in its cradle support.
|
|
|
|
Max pressure valve on hydraulic circuit.
|
|
|
|
Device to signal outriggers not in resting position.
|
|
|
|
Flow restrictor valve on hydraulic circuit.
|
|
|
|
Spirit level indicator
|
|
|
|
PLC based electronic circuit for safety interlocking.
|
|
|
|
Spot light in the basket.
|
|
Paint
|
Primer
|
Two coat of epoxy primer
|
|
|
Finish
|
Two coat of PU/synthetic enamel.
|
